Discussion Starter · #1 · (Edited)
... and for other inferior rifles as well. :D

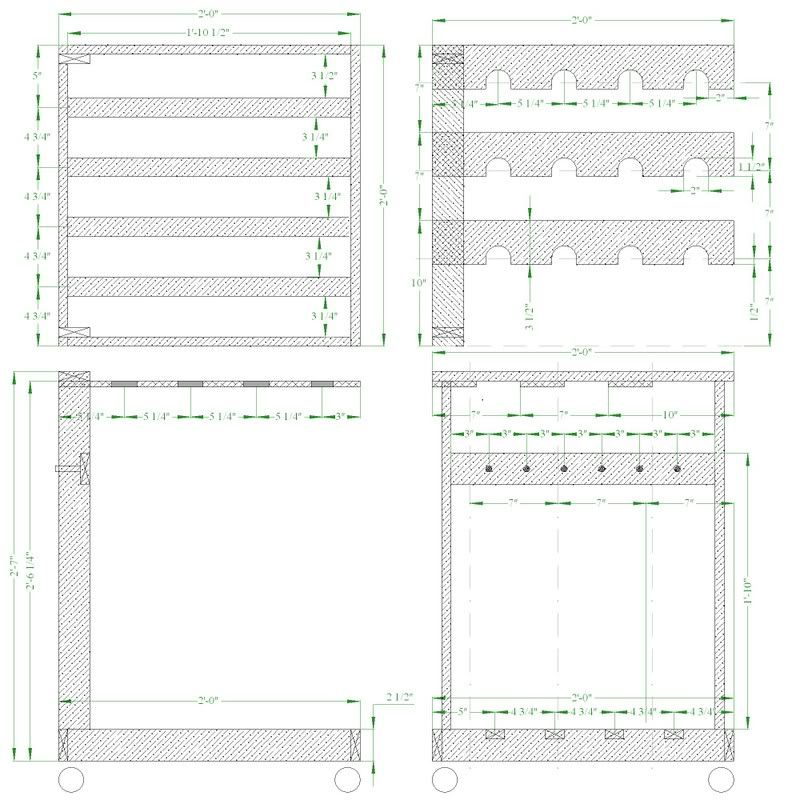

I was asked to post plans of the racks, so here they are. The whole idea was to design them so that they can be made in the simplest way. No biscuit joints, no dovetails, no tang & groove, just straight cits, screw & glue. Material is oak, dimensions are shown below. It takes me 6-7 hrs (depending on the weather) to build a rack, stain it and put two coats of varnish.





























·
Premium Member
Joined
·
105,711 Posts
Looking good Nick. I especially like the idea about the pegs being used for bayonets. Very nifty.


·
Registered
Joined
·
953 Posts
Nick-Thanks! I built one of those racks and it turned out great...even the other half likes it, even if she isn't too thrilled about it taking up space in her closet! Ha!


·
Administrator
Joined
·
12,129 Posts
Discussion Starter · #4 · (Edited)
...taking up space in her closet!
Yeah, but that's part of the design. The width & depth are 2'x2' - precisely to fit in a closet!

Eventually I lost the battle for the closets. Not to my wife, but to my kids. :(

PS. Did you use my drawings? I posted them here a few years ago.


·
Premium Member
Joined
·
3,115 Posts
Thank you Nick. That is Great!!

Now I need to gather my tools back from my son's hous to get one started. :rolleyes:

- Bes Regards! Mike


·
Administrator
Joined
·
12,129 Posts
Discussion Starter · #9 ·

·
Banned
Joined
·
490 Posts
It's good, but a specialised M95 rack might usefully provide horizontal storage, since they can use more oil inside the bolt, to let the action work smoothly.


·
Administrator
Joined
·
12,129 Posts
Discussion Starter · #11 · (Edited)
I have served in the military but have never seen horizontal racks.

As far as "specialized M.95 racks"... I thought it's clear to everyone that the "specialization" was only a joke.
